Mechanical seals

Mechanical seal Types 159 and 159 A

These two dynamic, non-balanced mechanical seals of the types 159 and 159 A are optimised for a wide range of applications. They convince through their versatile usability, low costs and short installation spaces. The two mechanical seal types differ only by their dimensions.

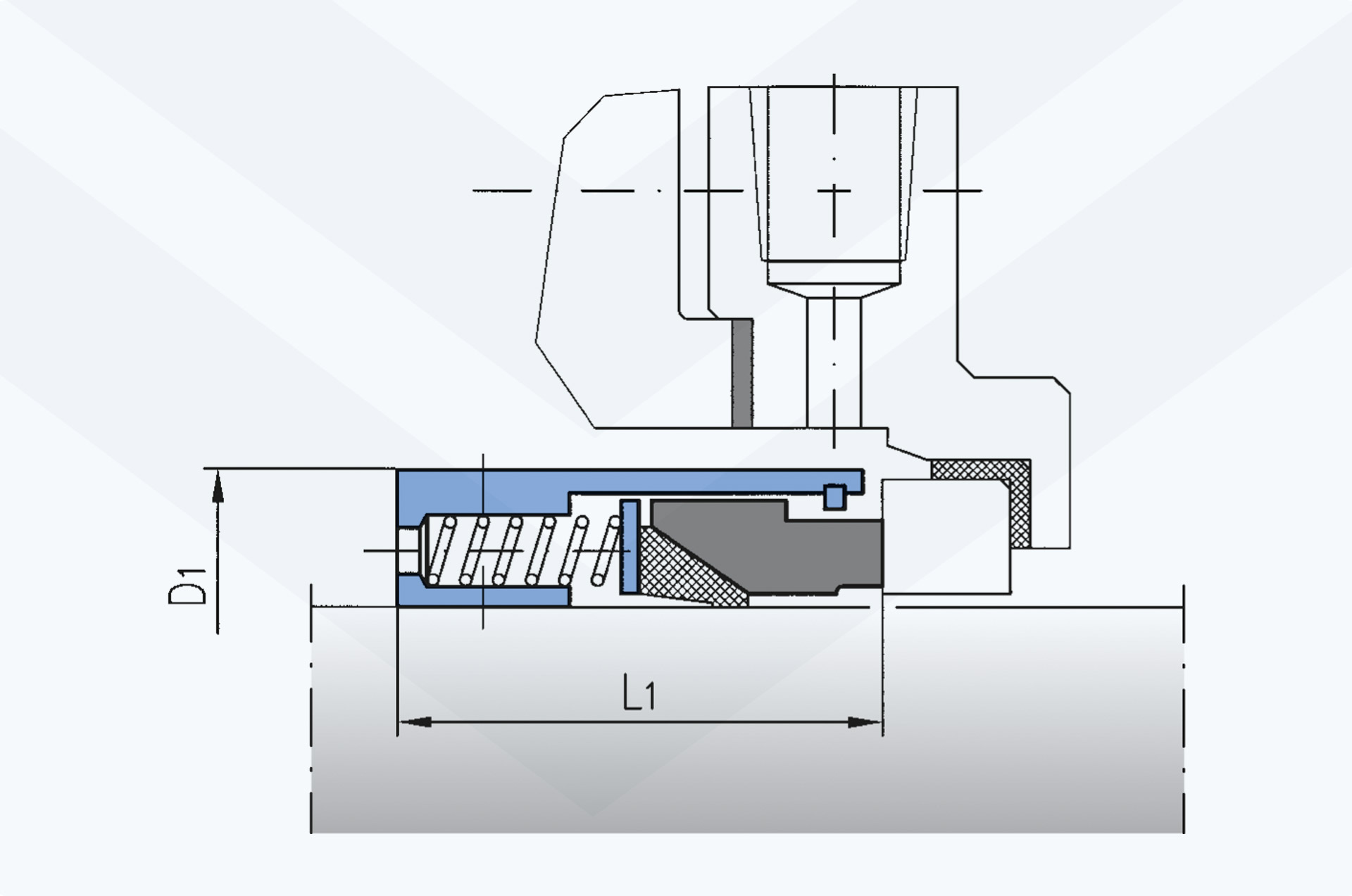

    Type 159

    • PTFE (graphite) wedge
    • Independent of the direction of rotation

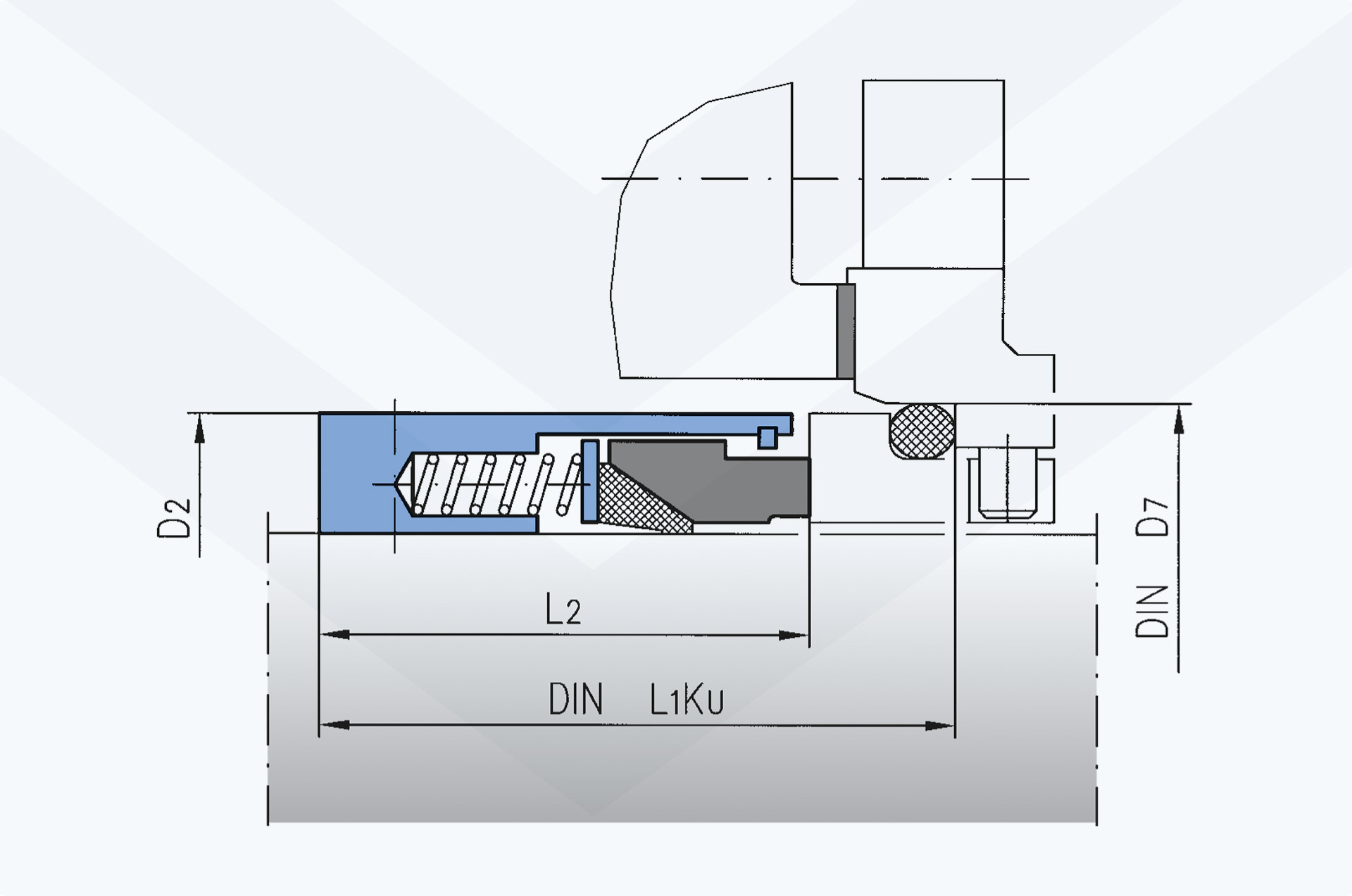

    Type 159A

    • PTFE (graphite) wedge
    • Independent of the direction of rotation
    • L1KU dimensions with stationary parts DS1 and DS2
    More...
    Technical details
    Type 159
    Range of application
    Pressure 10 bar
    Temp. Elastomer-Begrenzung
    Speed 15 m/s

    Sizes
    Dshaft 10 - 100 mm
      3/8" - 4"
    Materials
    Metals DIN 1.4571
    Springs DIN 1.4310, Hast. C
    Faces CA, SC
    Wedges PTFE, Graphite

    Other sizes, materials or design variations upon request.

    Type 159A
    Range of application
    Pressure 10 bar
    Temp. Elastomer-Begrenzung
    Speed 15 m/s

    Sizes
    Dshaft 10 - 100 mm
      3/8" - 4"
    Materials
    Metals DIN 1.4571
    Springs DIN 1.4310, Hast. C
    Faces CA,SC,SSIC,TC
    Wedges PTFE, Graphite

    Other sizes, materials or design variations upon request.
