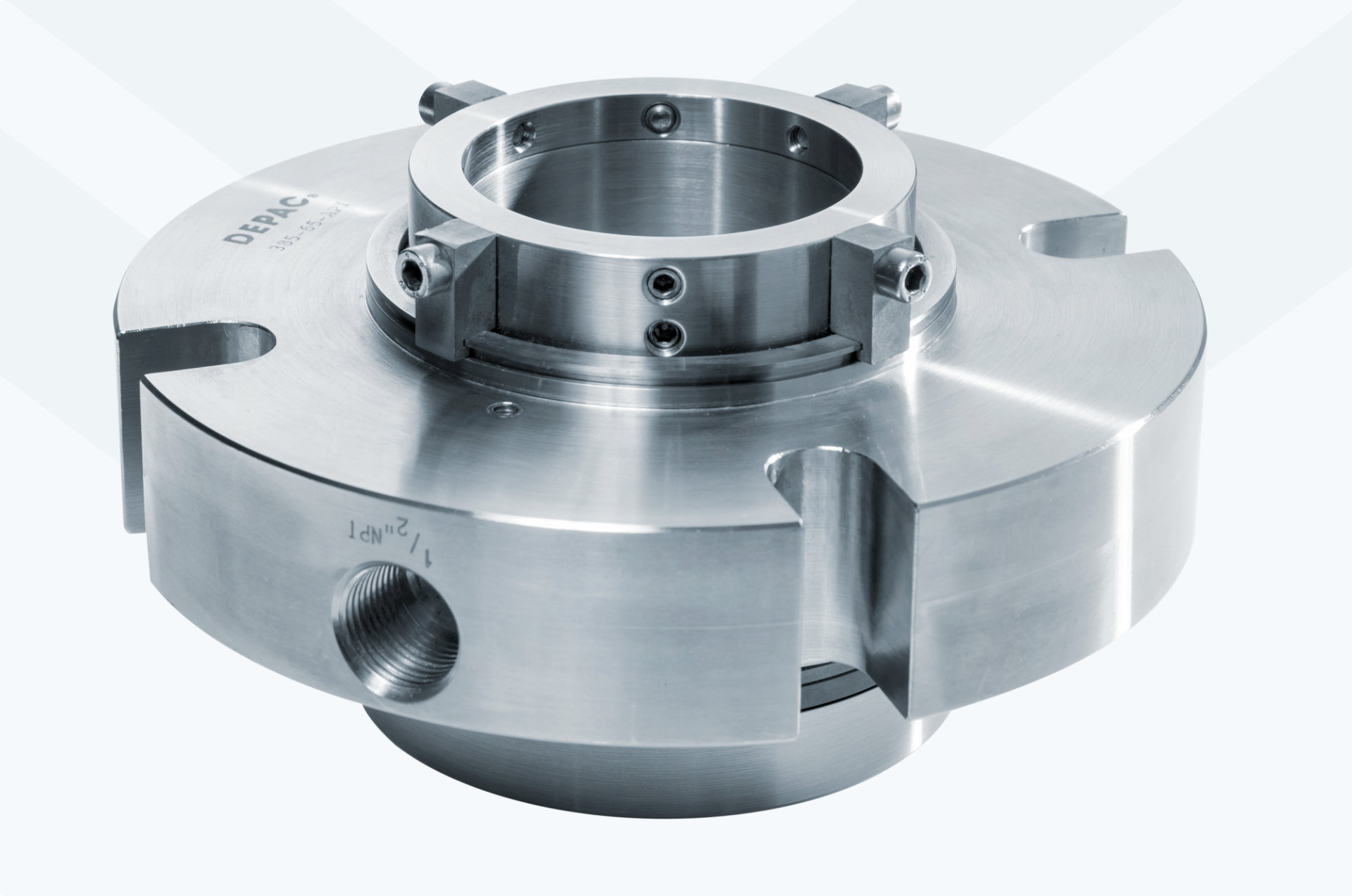

Mechanical seal Type 380

The type 380 is a stationary single-cartridge seal. The mechanical seal was specially optimised to meet the requirements of the petroleum industry. The type 380 is equipped with a so-called "floating" safety seal. As a result, this mechanical seal is also recommended for extreme boundary conditions - from water and highly volatile hydrocarbons to acids and alkalis.

More...
Advantages
  • Cartridge-mounted
  • Stationary design principle
  • Balanced
  • "Floating" safety seal
  • Independent of the direction of rotation
  • Shock and vibration-dampend faces
  • Springs outside the medium
Technical details
Range of application
Pressure 700 mm Hg - 28 bar
Temp. depending on Elastomer
Speed 35 m/sec.

Materials
Dshaft 20 - 110 mm
  7/8“ - 4 ¼“
Materials
Metals DIN 1.4571 / 316 SS
Springs Hast. C
Faces CA, SC, SSIC, TC (Ni)
O-Rings FKM, EPDM, PTFE, FEP Umm., Chemraz, Kalrez, Aflas, etc.
Alternatives
Membrane (bellows) Hast. C
Rolled bellows Hast. C, Incolloy

Other sizes, materials or design variations upon request.
