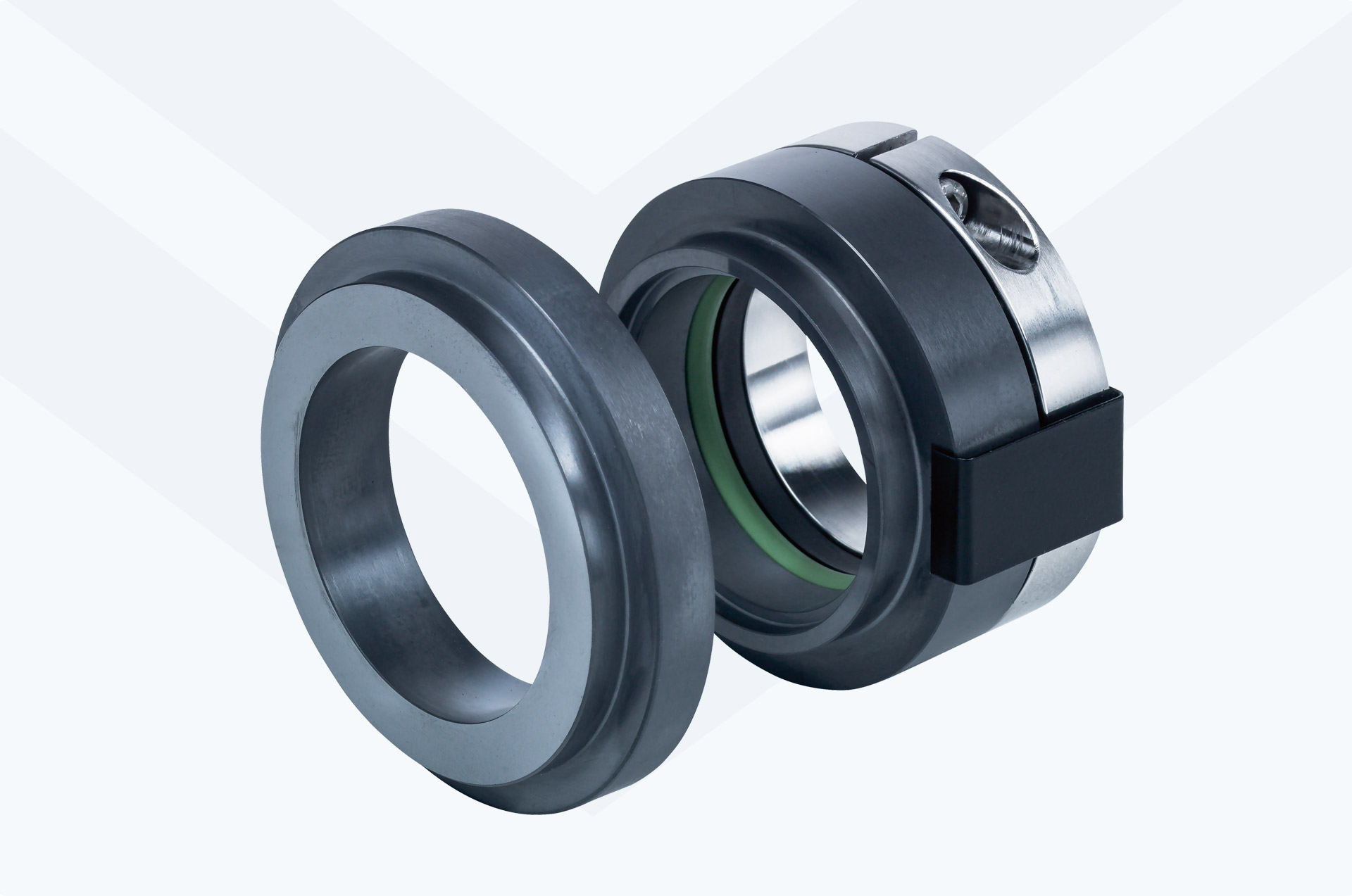

Mechanical seal Type 140

The type 140 is a dynamic, balanced mechanical seal. The outside mounted mechanical seal is useful above all where there is little space in the stuffing box - and has the advantage that no metal comes into contact with the medium. The type 140 is an inexpensive mechanical seal for use with aggressive media.

    Type 140

    • Mounted outside
    • Carbon face with stainless steel reinforcement
    • Retaining ring is clamped to the shaft (a positive retention/support system required above 10 bar)
    • No set screws
    • No metal parts in contact with the medium
    • Springs outside the medium
    • Hastelloy C springs
    More...
    Advantages
    • Balanced for a longer service life
    • Welded bellows is self-cleaning
    • Independent of the direction of rotation
    • Use with various stationary faces possible
    Technical details
    Range of application*
    Pressure 700 mm Hg up to 30 bar
    Temp. Elastomer dependent
    Sliding velocity up to 25 m/s
    Shaft movements axial +/- 1,0 mm
      radial +/- 1,0 mm

    Sizes
    Dshaft 24 - 160 mm
      ¾“ - 4“
      Special sizes available on request
    Materials
    Metals DIN 1.4571
    Springs Hast. C
    Faces CA, CE, SC, SSIC, TC
    O-Rings FKM, EPDM, FEP Umm., Chemraz, Kalrez, Aflas, etc.

    Other sizes, materials or design variations upon request.
    * Maximum temperature / pressure / speed indicates operating extremes independently and does not imply the seal will function at these extremes at the same time. Contact DEPAC if in doubt.
